ATS Automatic Transfer Switch (ATS) changeover switch

 Automatic Transfer Switch (ATS)

An Automatic Transfer Switch (ATS) changeover switch is a crucial device used in electrical systems to ensure continuous power supply. It automatically transfers the load from a primary power source to a backup source, such as a generator, when the primary source fails or falls outside preset limits. Wen the primary source is restored and stable, the ATS switches the load back.

Key Components of an ATS Changeover Switch:

1.Controller:

The brain of the ATS, it monitors power conditions and decides when to transfer the load.

2.Power Switching Mechanism:

 This includes contactors or relays that physically switch the load between power sources.

3.Power Sources:

 Typically involves a primary source (e.g., utility power) and a secondary source (e.g., a generator).

4. Sensors:

These monitor voltage, frequency, and other parameters of both power sources to determine when to switch.

Types of ATS Changeover Switches:

1.Open Transition:

 There is a brief interruption of power during the switch.

2.Closed Transition:

The switch occurs without any interruption, briefly paralleling both sources.

3.Soft Load Transfer:

A more sophisticated version that gradually shifts the load from one source to another, balancing the power between them.

4. Bypass-Isolation ATS:

 Allows for maintenance without interrupting the power supply by bypassing the ATS mechanism.

Applications:

☆  Residential:

 Ensures backup power during outages.

☆  Commercial:

 Keeps critical systems like IT infrastructure, lighting, and HVAC running.

☆  Industrial:

 Maintains power for heavy machinery and processes that cannot tolerate interruptions.

☆  Healthcare:

 Provides uninterrupted power to critical medical equipment.

Advantages:

☆  Reliability:

 Ensures continuous power supply.

☆  Safety:

Reduces the risk of power surges and other electrical issues.

☆  Convenience:

 Automates the process of switching power sources without manual intervention.

Overall, ATS changeover switches are essential for applications where power continuity is critical, offering reliability and safety in various settings.

Selecter switch

Selecter switch working principle:

A selector switch is a type of electrical switch that allows the user to choose between multiple options or circuits. It typically has a rotating knob or lever that can be set to different positions, each corresponding to a different circuit or function.

Here's how it works:

Working Principle:

1. Multiple Contacts:

 A selector switch has multiple terminals, which are connected to different circuits. The number of positions the switch can select corresponds to the number of these terminals.

2. Rotary Mechanism:

   - The switch is operated by rotating a knob or lever. Inside the switch, this rotating action moves a conductive element, often called a "wiper," across the different contact points.

3. Circuit Selection:

 ☆  As the knob or lever is rotated, the wiper connects the common input terminal to one of the output terminals, depending on the position of the switch.

☆   Each position of the switch connects the common terminal to a different output, allowing the user to select between different circuits or functions.

4. Operation Modes:

   - Selector switches can have multiple positions, like 2-way, 3-way, 4-way, etc., depending on the number of circuits or options available.

   - Some selector switches can also have a "neutral" or "off" position where no circuit is connected.

Types of Selector Switches:

☆  Single Pole Selector Switch:

 Controls one circuit and selects between multiple outputs.

☆   Double Pole Selector Switch:

 Controls two independent circuits simultaneously, with each pole selecting between multiple outputs.

Multi-position Selector Switch

 Has more than two positions, allowing for the selection of multiple circuits or functions.

Applications:

Industrial Control Panels:

 Used to select different operating modes or functions of machines.

- Audio/Video Systems:

Used to switch between different input sources.

Electrical Testing:

Used to select different voltage or current ranges on a testing device.

Household Appliances:

Used to select different settings, like fan speed or heat level

Example:

- In an audio system, a selector switch might be used to choose between different input sources (like a CD player, radio, or auxiliary input). Rotating the switch connects the output to one of these sources, directing the signal to the speakers.

Selector switches are versatile and essential components in systems where multiple operations or settings need to be controlled from a single switch.

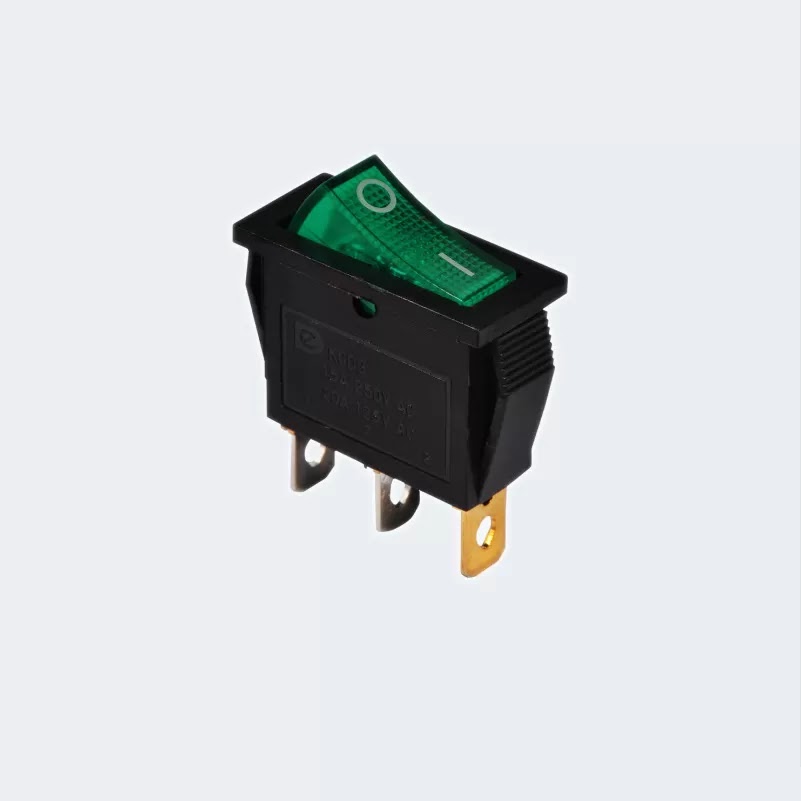

SPST switch

SPST switch off on working principle:

 An SPST (Single Pole Single Throw) switch is one of the simplest types of switches. It has two terminals and operates as an on/off switch for a single circuit. Here's how it works:

Working Principle:

1.Single Pole (SP):

   The "single pole" part of the name refers to the switch having one input (pole). This input is connected to one circuit path.

2. Single Throw (ST):

   - The "single throw" refers to the switch having one output. The switch can either connect or disconnect this single circuit path.

3. On/Off Function:

 ☆ When the switch is in the "ON" position, it closes the circuit, allowing current to flow from the input terminal to the output terminal. This completes the circuit, powering the connected device.

 ☆ When the switch is in the "OFF" position, it opens the circuit, preventing current from flowing between the terminals. This breaks the circuit, turning off the connected device.

Operation:

☆ ON Position:

The internal mechanism of the switch connects the two terminals together, allowing electricity to flow.

☆OFF Position:

 The internal mechanism separates the two terminals, stopping the flow of electricity.

Applications:

SPST switches are mostly used in applications where a simple on/off control is needed, such as in power electronic devices, light switches, and basic control panels.

The SPST switch is straightforward, reliable, and is a fundamental component in many electrical circuits.

Slide switch

Slide switch working principle:

 A slide switch is a type of electrical switch that operates by sliding a knob or lever back and forth to open or close an electrical circuit. Here's how it works:

Working Principle:

1.Internal Contacts:

   - Inside the slide switch, there are metal contacts that are connected to the external terminals. The switch typically has three terminals: one common terminal (C) and two output terminals (A and B).

2. Slider Mechanism:

  The slider is connected to a conductive element (often called a wiper) inside the switch. When you slide the knob or lever, the wiper moves along the internal contacts.

3. Open and Close Circuits:

   - When the slider is moved to one position, it connects the common terminal (C) to one of the output terminals (A), completing the circuit and allowing current to flow.

   - When the slider is moved to the other position, it connects the common terminal (C) to the other output terminal (B), changing the path of the current flow.

   - In the middle position, the slider might disconnect all terminals, leaving the circuit open (no connection).

4. Types of Slide Switches:

  Single Pole Single Throw (SPST):

 This switch has two positions (ON or OFF) with two terminals. Sliding the switch connects or disconnects the circuit.

  Single Pole Double Throw (SPDT):

This switch has three terminals and can connect the common terminal to one of two other terminals, allowing the circuit to switch between two different outputs.

 Double Pole Double Throw (DPDT):

This switch has six terminals and can control two independent circuits, allowing each to be switched between two outputs.

Applications:

Slide switches are commonly used in small electronic devices, like toys, flashlights, and other battery-operated gadgets, where a simple on/off or selection switch is needed.

The simplicity and reliability of slide switches make them a popular choice in various applications.

Tactile switch

 Tactile switch how to work:

A tactile switch, also known as a tact switch, is a type of momentary switch that is commonly used in electronic devices to provide a physical feedback, typically through a small "click" or tactile sensation, when pressed. These switches are used in applications where the user needs to confirm that a button has been pressed without needing to look at the device.

Working Principle of a Tactile Switch:

1. Mechanical Operation:

    A tactile switch is made up of several components: a small metal dome (or disc), contacts, a plunger, and a base.

    When the plunger (or button) is pressed, it pushes down on the metal dome.

    The metal dome collapses, making contact with the underlying circuit and closing the circuit to allow current to flow.

2. Momentary Action:

   - Tactile switches are momentary, meaning they only maintain the connection while being pressed.

   Once the pressure is released, the dome returns to its original shape, breaking the circuit and stopping the current flow.

3. Tactile Feedback:

   - The characteristic "click" that occurs when the dome collapses provides tactile feedback to the user, indicating that the switch has been successfully actuated.

   - This feedback is essential in many applications, such as keyboards, remote controls, and other handheld devices.

4. Electrical Contact:

   - When the metal dome makes contact with the conductive pads on the base of the switch, it completes the electrical circuit.

   This closure of the circuit can be detected by a microcontroller or other electronic component to register an input, like a keypress or command.

5.Return Mechanism:

   - The metal dome is designed to return to its original shape immediately after the pressure is released.

   This return mechanism ensures that the switch is ready for the next press without any delay.

Applications:

Keyboards:

Tactile switches are commonly used in mechanical keyboards, providing both tactile feedback and a clicking sound.

Consumer Electronics:

They are used in remote controls, mobile devices, and other handheld gadgets where feedback is needed.

- Automotive Controls:

Tactile switches can be found in dashboard controls, where they offer reliable feedback for users.

Industrial Equipment:

 These switches are used in machinery controls, where operators need to feel when a button has been pressed.

Advantages:

Tactile Feedback:

 Provides clear feedback that a button has been pressed.

Compact Size:

Tactile switches are small and can be easily integrated into various devices.

Durability:

 They are designed to withstand millions of presses, making them reliable for long-term use.

Cost-Effective:

 Tactile switches are generally inexpensive, making them suitable for high-volume manufacturing.

Tactile switches are an integral part of many modern electronic devices, providing users with a reliable and satisfying way to interact with their gadgets.

Limit switch

 Limit switch working principle:

A limit switch is an electromechanical device used to detect the presence or absence of an object or to monitor the position of a machine component. It's commonly used in industrial applications to control machinery or to provide safety by detecting the limits of movement or position.

 Working Principle of a Limit Switch:

1.Mechanical Actuation:

   - The limit switch is equipped with an actuator, which could be a lever, roller, plunger, or other mechanical devices.

   - When an object or a machine part moves into contact with the actuator, it pushes or pulls the actuator, triggering the switch mechanism inside.

2. Switching Mechanism:

   The internal switching mechanism typically consists of contacts that change state (open or close) when the actuator is moved.

   If the limit switch is normally open (NO), the contacts close when activated, completing the circuit and allowing current to flow.

   - If the limit switch is normally closed (NC), the contacts open when activated, breaking the circuit and stopping the flow of current.

3. Position Monitoring:

   - The primary function of a limit switch is to detect the position of a moving part or an object.

   When the moving part reaches a certain point (the "limit"), it activates the limit switch, sending a signal to stop the movement or to trigger another action.

4. Signal 7:

   - The change in the state of the limit switch can be used to send a signal to a control system, such as a programmable logic controller (PLC).

   - The control system can then respond by stopping a motor, reversing its direction, activating an alarm, or performing another predefined action.

 Applications:

End-of-Travel Detection:

Limit switches are used to detect the end of travel in machines like elevators, conveyor belts, and robotic arms.

Safety Interlocks:

 In safety-critical systems, limit switches can ensure that machinery only operates when certain conditions are met, such as doors being closed or guards being in place.

Position Feedback:

 They provide position feedback in CNC machines, presses, and automated assembly lines, ensuring accurate control of operations.

Counting Operations:

Some systems use limit switches to count objects passing a certain point, useful in packaging or material handling.

Types of Limit Switches:

Lever-type:

Activated by a lever that is pushed by the object.

Plunger-type:

 Activated by direct contact, where the object presses a plunger.

Roller-type:

 Similar to lever-type but with a roller on the lever to reduce friction.

Rotary:

 Used for detecting rotational positions or limits.

Limit switches are valued for their durability, reliability, and ability to operate in harsh industrial environments. They play a critical role in ensuring safe and efficient operation in a wide range of mechanical systems.

Dip switch

 Dip switch working principle:

A DIP (Dual In-line Package) switch is a manual electrical switch that is packaged with others in a group in a standard dual in-line package. It's often used in electronics to allow the user to select the operating mode or configure settings on a device.

Working Principle of a DIP Switch:

1. Mechanical Switch Operation:

A DIP switch consists of several tiny individual switches that can be toggled between two positions: ON or OFF.

   Each switch is typically connected to a circuit, allowing or interrupting the flow of electricity when toggled.

2. Circuit Configuration:

   - When a switch is in the ON position, it completes the circuit, allowing current to flow through.

   When a switch is in the OFF position, the circuit is open, preventing current from flowing.

   Each switch usually controls a specific function or configuration within the device.

3. Binary Coding:

   - DIP switches are often used to set binary-coded values. For example, in a 4-switch DIP, each switch can represent a binary digit (0 or 1).

   The combination of the switches being ON or OFF represents a binary number that the device can interpret as a specific setting or configuration.

4. Interfacing with Microcontrollers or Circuits:

   - The positions of the DIP switches are read by the microcontroller or circuit to determine the desired configuration.

   Depending on the positions, the device behaves differently, such as changing modes, selecting memory banks, or setting addresses.

Applications:

Configuration Settings:

DIP switches are often used for configuring settings on devices like motherboards, game controllers, or older printers.

Address Setting:

 In communication protocols (e.g., CAN, I2C), DIP switches can be used to set device addresses.

Mode Selection:

Some devices use DIP switches to select different operating modes, such as test, normal operation, or programming mode.

DIP switches are simple, cost-effective, and reliable for setting or configuring electronic devices manually.

Timer switch

 A timer switch is a device

 that automatically controls the power to a circuit based on a preset time schedule. It is commonly used to turn lights, fans, or other electrical devices on and off at specific times without requiring manual operation. Here's how it works:

Working Principle of a Timer Switch

1. Power Supply:

  The timer switch is connected to a power supply, usually through the main electrical circuit. It receives continuous power to operate its internal clock and timing mechanism.

2. Internal Clock or Timing Mechanism:

   - The core of the timer switch is an internal clock or timing circuit. This clock can be either mechanical (using gears and springs) or electronic (using digital circuits). The user sets the desired on/off times, and the clock keeps track of the time.

3. Switching Mechanism:

   - The timer switch has a built-in relay or similar switching mechanism that controls the flow of electricity to the load (e.g., light, fan).

   - When the preset time is reached, the timer sends a signal to the relay to either close (turn on) or open (turn off) the circuit.

4.Manual Override (Optional):

   - Many timer switches include a manual override feature, allowing the user to bypass the timer and control the device directly. This is useful if you want to turn the device on or off outside of the preset schedule.

5.Load Control:

   - The timer switch controls the connected load based on the preset schedule. For example, it might turn on a light at 6:00 PM and turn it off at 10:00 PM, automating the process according to the user's needs.

Types of Timer Switches

- Mechanical Timer Switches:

 These use a dial or a set of pins to set the on/off times. The internal clock is driven by a motor.

Digital Timer Switches:

These offer more precise control and additional features like multiple on/off cycles, random modes (to simulate occupancy), and battery backup.

Smart Timer Switches:

These can be controlled via smartphones or home automation systems, offering remote control and integration with other smart devices.

Applications

Lighting:

 Automatically turning lights on and off to save energy or for security purposes.

-Heating/Cooling Systems:

 Controlling HVAC systems according to a schedule.

Irrigation Systems:

 Automatically watering gardens or lawns at set times.

Appliances:

 Controlling various home appliances to optimize energy use.

Advantages:

Energy Efficiency:

 Reduces energy consumption by ensuring devices are only on when needed.

Convenience:

 Automates routine tasks like turning lights on/off.

Security:

 Can make a home look occupied by turning lights on and off when no one is home.

A timer switch is a simple yet effective way to automate electrical devices, enhancing convenience, security, and energy efficiency.

Push button switch

Push button switch working principle:

 Push button switch is a type of button that is operated by pressing a button. These switches are commonly used to start or stop circuits, control devices, or as input mechanisms in various electronic devices.

Key Characteristics:

Momentary Action:

 Push button switches are often momentary, meaning they only stay in the on position while the button is pressed. Once released, the switch returns to its original state.

-Latching Action:

 Some push button switches have a latching mechanism, meaning they stay in the on or off position after being pressed until they are pressed again.

Normally Open (NO) and Normally Closed (NC):

Push button switches can be normally open (NO), where the circuit is open until the button is pressed, or normally closed (NC), where the circuit is closed until the button is pressed.

Design Variations:

 They come in various sizes, shapes, and colors, with features like illumination, waterproofing, and different actuation forces.

Applications:

 Commonly used in calculators, computer keyboards, control panels, and as power buttons in various devices.

Would you like more specific information or help with a particular type of push button switch?

Emergency Switch



An emergency switch,

 also known as an emergency stop (e-stop) or kill switch, is a safety mechanism designed to quickly stop machinery or equipment in the event of an emergency. It is typically a large, red, easily accessible button or lever that, when activated, immediately cuts off power to the equipment, bringing it to a halt to prevent injury, damage, or other hazards.

These switches are commonly found in industrial environments, laboratories, vehicles, and even consumer electronics. They are designed to be easily recognizable and can often be engaged by simply pressing down on them or pulling them, depending on the design. Once activated, the equipment typically requires manual resetting before it can be restarted, ensuring that the cause of the emergency is addressed First Emergency
