Magnetic Field

 A solenoid is a coil of electric wire wrapped in a propeller, often around a metal core, used to create a magnetic field when an electrical current crosses it

Magnetic field

Operating

- Magnetic Field Creation: When electrical current passes through the coil, it generates a magnetic field inside and around the solenoid.

- Electromagnetic Effect: This magnetic field can attract or repel ferromagnetic objects (such as a mobile metal core) located near or inside the solenoid.

Applications

1. Electromagnets: Used in various devices to generate a controlled magnetic field.

2. Electromagnetic Valves: Used in plumbing and refrigeration systems to control the flow of fluids.

3. Relays and contacts: used to open or close electrical circuits.

4. Linear Actors: Converting electrical energy into linear motion.

Coil: A winding of conductor wire.

- Core: Often made of mild iron to increase the intensity of the magnetic field.

Solenoid is a fundamental element in many electromechanical devices thanks to its ability to convert electrical energy into mechanical energy via a magnetic

vibration damper

 vibration damper working principle

A vibration damper, also known as a harmonic balancer, is a device used to reduce or eliminate unwanted vibrations in mechanical systems. Here's a basic overview of its working principle:

Vibrations damper

1. Absorption of Vibrations:

The damper consists of a mass (often a heavy ring) connected to a flexible material such as rubber or a viscous fluid. This mass is designed to absorb and dissipate vibrational energy.

2. Counteracting Vibrations:

 When the system vibrates, the damper's mass moves out of phase with the vibrations. This movement creates a counteracting force that dampens the vibrations.

3. Dissipation of Energy:

 The flexible material or fluid in the damper converts the vibrational energy into heat, which is then dissipated.

4. Harmonic Control:

 By tuning the damper to specific frequencies, it can effectively counteract harmonic vibrations, which are repetitive and periodic, reducing the overall stress on the mechanical system.

This principle is commonly used in automotive engines, rotating machinery, and other systems where controlling vibrations is crucial for performance and longevity.

Differences between copper wire and aluminium wire

Difference Between Copper and aluminum wires

Copper and aluminum wires are both commonly used in electrical wiring, but they have distinct properties and characteristics that make them suitable for different applications. Here are the key differences:

 Electrical Conductivity

Copper Wire:

 Copper has higher electrical conductivity compared to aluminum. This means copper wires can carry more current than aluminum wires of the same diameter.

-Aluminum Wire:

Aluminum has lower electrical conductivity than copper, so a thicker aluminum wire is needed to carry the same amount of current as a thinner copper wire.

 Weight

Copper Wire:

 Copper is denser and heavier than aluminum. This makes copper wires heavier, which can be a disadvantage in applications where weight is a concern.

-Aluminum Wire:

 Aluminum is much lighter than copper, making it easier to handle and install, especially in overhead power lines.

 Cost

Copper Wire:

 The higher cost of copper can make it less attractive for large-scale projects or where budget constraints are significant.

Aluminum Wire:

 Aluminum is cheaper, which can be a significant advantage in large installations or when cost savings are critical.

Mechanical Properties

-Copper Wire:

Copper is more ductile and less prone to breaking when bent or twisted. This makes copper wires more durable and reliable in various applications.

Aluminum Wire:

 Aluminum is more prone to breaking when bent repeatedly. It is also more susceptible to damage from vibration and other mechanical stresses.

Aluminium wires

 Corrosion Resistance

Copper Wire:

 Copper is relatively resistant to corrosion, which makes it suitable for use in environments where it might be exposed to moisture or chemicals.

Aluminum Wire:

Aluminum is more susceptible to oxidation and corrosion. However, aluminum wires are often coated to prevent corrosion.

Copper Wire

 Thermal Expansion

-Copper Wire:

Copper has a lower coefficient of thermal expansion, meaning it expands and contracts less with temperature changes. This helps maintain stable connections.

Aluminum Wire:

Aluminum has a higher coefficient of thermal expansion, leading to more significant expansion and contraction with temperature changes. This can affect the stability of electrical connections over time.

Applications

Copper Wire:

Due to its superior conductivity and durability, copper is often used in residential wiring, electronics, and high-performance applications.

-Aluminum Wire:

Aluminum is commonly used in power distribution, overhead power lines, and some large industrial applications where its lighter weight and lower cost are advantageous.

Both materials have their own advantages and disadvantages, and the choice between them depends on the specific requirements of the application.

So we can select the Right type of wire for your house and industrial.

Controlling voltage drop in electrical

 Controlling voltage drop in electrical circuits can be managed through several methods:

1. Increase Conductor Size:

 Using thicker wires (lower gauge number) reduces resistance, thereby lowering voltage drop for a given current.



2. Reduce Circuit Length:

 Minimize the length of the wiring between the power source and the load to decrease resistance and subsequent voltage drop.

3. Use Higher Voltage:

:Higher voltage reduces the percentage of voltage drop for the same power transmission, as long as the devices can handle the higher voltage.

4. Improve Connections:

Ensure proper and secure connections to minimize resistance at junctions and terminations.

5. Balanced Loads:

 Distribute loads evenly across circuits to prevent overloading of any one path and thus reduce voltage drop.

6. Voltage Regulation Devices:

 Use voltage regulators or stabilizers where necessary to maintain consistent voltage levels despite fluctuations in supply or load.

By implementing these strategies, you can effectively manage and control voltage drop in electrical systems, ensuring reliable operation of equipment and minimizing energy losses.

Way transmission line crate high voltage and low current

 High voltage and low current are used in transmission lines to minimize power losses. Here's how it works.

1. Power Equation:

Power transmaitted over a line is given by \( P = VI \), where \( P \) is power, \( V \) is voltage, and \( I \) is current.

2. Resistance Losses:

 Power loss due to the resistance \( R \) of the transmission line is given by \( P_{loss} = I^2 R \). This means power loss is proportional to the square of the current.

3. High Voltage, Low Current:

 By increasing the voltage and decreasing the current for a given power, the resistive losses \( I^2 R \) are significantly reduced because the current is lower.

For example, if the voltage is doubled, the current can be halved to transmit the same power, reducing the power loss to one-fourth.

Transmission lines

 why transmission lines operate at high voltages,

often in the range of hundreds of kilovolts.

Transmission lines create high voltage and low current through the use of transformers. Here's the process in detail:

1. Generation:

Electricity is generated at power plants at a lower voltage, typically between 11 kV and 25 kV.

2. Step-Up Transformers:

The generated electricity is then sent through step-up transformers, which increase the voltage to much higher levels, often between 100 kV and 765 kV.

3. Transmission:

 The high-voltage electricity is transmitted over long distances through transmission lines. At these high voltages, the current is lower for a given power, reducing resistive losses.

4. Step-Down Transformers:

 Near the point of use, the high-voltage electricity is passed through step-down transformers, which decrease the voltage to safer, more usable levels for homes and businesses, typically down to 110-240 volts.

The use of transformers at both ends of the transmission line allows for efficient long-distance transmission of electrical power with minimal losses.

 Voltage drop:

Voltage drop in a line occurs due to the resistance (or impedance) of the conductors carrying the current. Here are the main factors contributing to voltage drop:

1. Conductor Resistance:

 Every conductor has some inherent resistance, and longer or thinner wires have higher resistance, leading to more voltage drop.

2. Current Flow:

 Higher current flow increases the voltage drop. According to Ohm's Law (V = I * R), the voltage drop increases with current.

3. Power Factor:

 In AC systems, a low power factor increases the voltage drop because more current is required to deliver the same amount of power.

4. Conductor Temperature: Higher temperatures increase the resistance of the conductor, thus increasing the voltage drop.

To prevent or reduce voltage drop:

1. Use Thicker Conductors:

 Using conductors with a larger cross-sectional area reduces resistance.

2. Shorten Cable Lengths:

 Reducing the length of the conductors minimizes the resistance and thus the voltage drop.

3. Increase Voltage Level:

 Transmitting power at higher voltages reduces current for the same power level, which in turn reduces voltage drop.

4. Use Conductors with Lower Resistance:
 Materials like copper or aluminum with lower resistance help reduce voltage drop.

5. Improve Power Factor:

Using power factor correction devices such as capacitors or synchronous condensers can reduce the amount of current required and thus the voltage drop.

6. Proper Connection and Maintenance:

Ensuring all connections are secure and free from corrosion helps reduce resistance at connection points.

By addressing these factors, you can effectively minimize voltage drop in electrical systems.

Differences between battery and capacitors

Batteries and capacitors both store electrical energy, but they do so in fundamentally different ways and are used for different purposes. Here are the key differences:

1.Energy Storage Mechanism.

 Battery:

 Stores energy chemically. When a battery discharges, a chemical reaction occurs that releases electrical energy.

 Capacitor:

 Stores energy electrostatically in an electric field between two conductive plates separated by an insulating material (dielectric).

2. Energy Density:

 Battery:

 Has a high energy density, meaning it can store a large amount of energy relative to its size.

 Capacitor:

Has a lower energy density compared to batteries.

3.Power Density.

 -Battery:

 Generally has a lower power density, meaning it can deliver energy at a lower rate.

 Capacitor:

Has a high power density, allowing it to deliver energy very quickly.

4. Charging and Discharging:

 Battery:

Charges and discharges slowly over a longer period, making it suitable for applications requiring a steady, long-term energy supply.

 Capacitor:

 Charges and discharges quickly, which is useful in applications requiring rapid energy delivery.

Capacitor

5. Lifetime:

 -Battery:

Has a limited number of charge-discharge cycles before it degrades and loses capacity.

 Capacitor:

 Can endure many more charge-discharge cycles without significant degradation.

6. Applications:

 -Battery:

Used in applications like mobile phones, laptops, electric vehicles, and other devices needing a sustained energy source.

 Capacitor:

 Used in applications like power conditioning, signal coupling and decoupling, filtering, and in devices that need quick bursts of energy

7. Maintenance

 Battery:

Requires more maintenance and management to prevent overcharging, overheating, and degradation.

 Capacitor:

 Generally requires less maintenance and has a simpler management system.

8. Voltage Characteristics:

 Battery:

Provides a relatively constant voltage until it is almost depleted.

Understanding these differences helps in selecting the right component for specific electrical and electronic applications.

 Industrial Electrician in Modern Manufacturing

Industrial electricians play a crucial role in maintaining the electrical systems and machinery essential for the smooth operation of manufacturing plants. Their expertise ensures minimal downtime and optimal efficiency in production environments.

Key Responsibilities

Installation and Maintenance:

 Industrial electricians install and maintain electrical systems, including wiring, circuit breakers, transformers, and motors. They ensure that all installations comply with safety standards and regulations.

Troubleshooting and Repairs:

 When equipment malfunctions, industrial electricians diagnose and repair issues promptly. They use specialized tools to identify electrical faults and restore machinery to operational status, reducing costly downtime.

Essential Skills

2.Technical Proficiency

 Mastery of electrical systems, blueprint reading, and familiarity with industry-specific machinery are critical. Industrial electricians must stay updated with technological advancements to handle sophisticated equipment.

2.Problem-Solving Abilities.

 Quick and effective troubleshooting is vital. Electricians must analyze problems, identify root causes, and implement solutions efficiently to maintain production flow.

3.Continuous Training:

 Ongoing training in safety practices and new technologies is essential. Industrial electricians frequently participate in training programs to stay abreast of evolving safety standards and emerging technologies.

 Career Opportunities and Growth

High Demand:

 The demand for skilled industrial electricians is high, driven by the growth of automated manufacturing and the need for regular maintenance of electrical systems.

Career Advancement.

 With experience, industrial electricians can advance to supervisory roles, project management, or specialized fields such as robotics or renewable energy systems.

Conclusion

Industrial electricians are indispensable in the manufacturing sector. Their expertise in electrical systems ensures that production processes run smoothly and safely. As technology advances, the role of the industrial electrician will continue to evolve, offering exciting opportunities for growth and specialization.

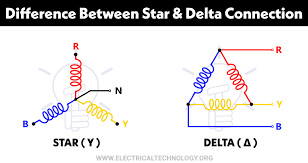

Differences between star, delta connection

 Star (Y) and Delta (Δ) connections are methods of connecting the windings of a three-phase system in electrical engineering. Here are the key differences between them:

 Star Connection (Y)

1. Configuration:

 - Each of the three phases is connected to a common point called the neutral point.

 - The other end of each phase winding is connected to the line terminals.

2. Voltage:

 - Line voltage (voltage between any two lines) is √3 times the phase voltage (voltage between any line and the neutral point).

 - Line voltage = √3 × Phase voltage.

3. Current:

 - Line current is equal to the phase current.

4. Application:

 - Commonly used in applications requiring a neutral for returning currents, such as distribution systems.

 - Suitable for long-distance power transmission because it can operate with lower current and thus has reduced line losses.

5. Starting Method:

 - Often used in the starting method for motors where a star-delta starter is employed to reduce the initial current surge.

 Delta Connection (Δ)

1. Configuration:

 - The end of each phase winding is connected to the start of the next, forming a closed loop or triangle.

 - No neutral point is present.

2. Voltage:

 - Line voltage is equal to the phase voltage.

 - Line voltage = Phase voltage.

3. Current:

 - Line current (current through each line) is √3 times the phase current.

 - Line current = √3 × Phase current.

4. Application:

 - Commonly used in applications where a neutral is not required, such as in motor windings.

 - Suitable for systems requiring high starting torque, such as industrial motors.

5. Starting Method:

 - Used for the running configuration of motors when high torque is needed.

Summary

-Voltage Relation:

In star connection, line voltage is √3 times the phase voltage. In delta connection, line voltage is equal to the phase voltage.

-Current Relation:

 In star connection, line current is equal to the phase current. In delta connection, line current is √3 times the phase current.

Neutral Availability:

Star connection provides a neutral point; delta connection does not.

Applications:

Star is used for long-distance transmission and distribution systems, delta is used for high-torque motor applications.

Choosing between star and delta configurations depends on the specific requirements of the electrical system, such as the need for a neutral point, voltage and current specifications, and the type of load being powered.

5G

Sure, here are some article topics related to 5G technology that you might find interesting:

1. Introduction to 5G         Technology:
A comprehensive overview of what 5G is, its benefits over previous generations (4G/LTE), and the technologies that enable it (e.g., millimeter-wave bands, massive MIMO).

2. **Applications of 5G**: Exploring how 5G technology is revolutionizing various industries such as healthcare, transportation, manufacturing, and entertainment.

3. **5G and IoT**: Discussing the role of 5G in the Internet of Things (IoT) ecosystem, including its impact on smart cities, autonomous vehicles, and connected devices.

4. **Security Challenges in 5G Networks**: Analyzing the unique security risks posed by 5G networks, such as vulnerabilities in network slicing, and how these challenges are being addressed.

5. **Global Deployment of 5G**: Examining the progress of 5G deployment worldwide, focusing on different regions and countries, their strategies, challenges, and implications for global connectivity.

6. **5G and Edge Computing**: Exploring the synergy between 5G and edge computing, including how edge computing enhances the capabilities of 5G networks and vice versa.

7. **5G and Virtual Reality/Augmented Reality**: Investigating how 5G technology supports immersive technologies like VR and AR, enabling low latency and high bandwidth applications.

8. **Future Trends in 5G**: Speculating on the future developments of 5G technology, including potential advancements in speed, coverage, and new use cases that may emerge.

9. **Environmental Impact of 5G**: Discussing the energy efficiency of 5G networks compared to previous generations, and its potential environmental benefits and challenges.

10. **Regulatory and Policy Issues**: Exploring the regulatory landscape surrounding 5G technology, including spectrum allocation, privacy concerns, and international standards.

Each of these topics offers a rich ground for exploration depending on your specific interests and the depth you want to go into regarding 5G technology.
