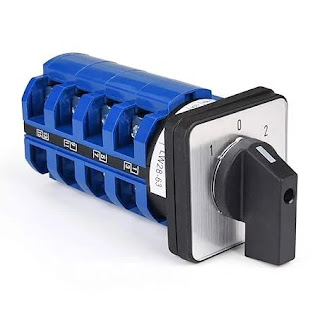

Selecter switch working principle:

A selector switch is a type of electrical switch that allows the user to choose between multiple options or circuits. It typically has a rotating knob or lever that can be set to different positions, each corresponding to a different circuit or function.

Here's how it works:

Working Principle:

1. Multiple Contacts:

A selector switch has multiple terminals, which are connected to different circuits. The number of positions the switch can select corresponds to the number of these terminals.

2. Rotary Mechanism:

- The switch is operated by rotating a knob or lever. Inside the switch, this rotating action moves a conductive element, often called a "wiper," across the different contact points.

3. Circuit Selection:

☆ As the knob or lever is rotated, the wiper connects the common input terminal to one of the output terminals, depending on the position of the switch.

☆ Each position of the switch connects the common terminal to a different output, allowing the user to select between different circuits or functions.

4. Operation Modes:

- Selector switches can have multiple positions, like 2-way, 3-way, 4-way, etc., depending on the number of circuits or options available.

- Some selector switches can also have a "neutral" or "off" position where no circuit is connected.

Types of Selector Switches:

☆ Single Pole Selector Switch:

Controls one circuit and selects between multiple outputs.

☆ Double Pole Selector Switch:

Controls two independent circuits simultaneously, with each pole selecting between multiple outputs.

Multi-position Selector Switch

Has more than two positions, allowing for the selection of multiple circuits or functions.

Applications:

Industrial Control Panels:

Used to select different operating modes or functions of machines.

- Audio/Video Systems:

Used to switch between different input sources.

Electrical Testing:

Used to select different voltage or current ranges on a testing device.

Household Appliances:

Used to select different settings, like fan speed or heat level

Example:

- In an audio system, a selector switch might be used to choose between different input sources (like a CD player, radio, or auxiliary input). Rotating the switch connects the output to one of these sources, directing the signal to the speakers.

Selector switches are versatile and essential components in systems where multiple operations or settings need to be controlled from a single switch.
