Understanding the Working Principle of an Autotransformer
An autotransformer is an electrical transformer with only one winding, unlike conventional transformers that have separate primary and secondary windings. This unique design allows the autotransformer to be more compact, cost-effective, and efficient. Here's a detailed look into its working principle and applications.
.webp) |

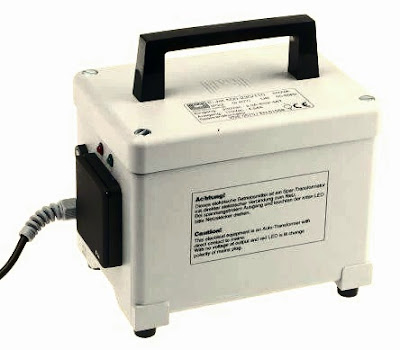

| Auto transformer |
Basic Structure and Components
An autotransformer consists of a single winding that is tapped at certain points to create electrical connections for both the primary and secondary circuits. The winding is divided into two parts: the common portion (shared by both primary and secondary) and the series portion (unique to each). The common portion is the segment of the winding that is used for both the input and output, while the series portion is used to adjust the voltage.
Voltage Transformation
The voltage transformation in an autotransformer is achieved through the principle of electromagnetic induction, similar to conventional transformers. The transformation ratio is determined by the number of turns in the winding between the taps:
\[ \frac{V_1}{V_2} = \frac{N_1}{N_2} \]
Where \( V_1 \) and \( V_2 \) are the voltages across the primary and secondary windings, and \( N_1 \) and \( N_2 \) are the number of turns in the primary and secondary windings, respectively. By varying the position of the tap, the voltage ratio can be adjusted, allowing the autotransformer to step up or step down the voltage as required.
Working Principle
1.Single Winding Operation:
The single winding of the autotransformer serves both as the input (primary) and the output (secondary). This is different from a conventional transformer that has separate windings for each.
2. Tap Adjustments:
Taps are made at various points along the winding to obtain the desired voltage levels. For example, if the tap is at the midpoint of the winding, the output voltage will be half of the input voltage, effectively stepping down the voltage by a factor of two.
3. Current Flow:
The current flows through the winding such that the primary and secondary currents are combined in the common portion, which reduces the amount of copper needed and increases the efficiency.
Advantages of Autotransformers
1. Cost-Effective:
2. High Efficiency:
Due to the single winding design, autotransformers have lower losses and higher efficiency, especially in applications where the voltage change is relatively small.
3. Compact Size:
The single winding reduces the size and weight of the transformer, making it more compact and easier to install in limited spaces.
4. Versatility:
They are highly versatile and can be used in various applications such as voltage regulation, load sharing, and power distribution.
Applications
Autotransformers are widely used in numerous applications, including:
1. Power Transmission and Distribution:
In electrical power systems, autotransformers are used for voltage regulation and stabilization, improving the efficiency of power transmission and distribution networks.
2. Industrial Applications:
They are employed in industrial equipment where precise voltage control is necessary, such as in motor drives and industrial machinery.
3. Laboratory and Testing Equipment:
Autotransformers are used in laboratories for testing purposes, where variable voltage supply is required.
4. Railway Electrification:
In railway systems, autotransformers help in maintaining the desired voltage levels for efficient train operation.
Conclusion
The autotransformer is a unique and efficient device that offers significant advantages over conventional transformers, particularly in terms of cost, size, and efficiency. By understanding its working principle and applications, one can appreciate the critical role it plays in modern electrical systems. Whether in power distribution, industrial settings, or specialized equipment, the autotransformer remains a vital component in managing and transforming electrical energy effectively.
